KDChart::AutoSpacerLayoutItem Class Reference

#include <KDChartLayoutItems.h>

Inheritance diagram for KDChart::AutoSpacerLayoutItem:

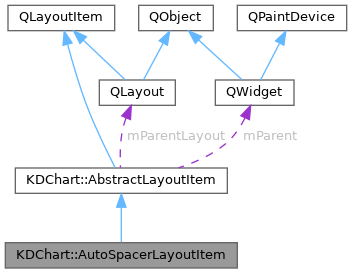

Collaboration diagram for KDChart::AutoSpacerLayoutItem:

Public Member Functions
	AutoSpacerLayoutItem (bool layoutIsAtTopPosition, QHBoxLayout *rightLeftLayout, bool layoutIsAtLeftPosition, QVBoxLayout *topBottomLayout)
Qt::Orientations	expandingDirections () const override
QRect	geometry () const override
bool	isEmpty () const override
QSize	maximumSize () const override
QSize	minimumSize () const override
void	paint (QPainter *) override
void	setGeometry (const QRect &r) override
QSize	sizeHint () const override
Public Member Functions inherited from KDChart::AbstractLayoutItem
	AbstractLayoutItem (Qt::Alignment itemAlignment={})
virtual void	paintAll (QPainter &painter)
virtual void	paintCtx (PaintContext *context)
QLayout *	parentLayout ()
void	removeFromParentLayout ()
void	setParentLayout (QLayout *lay)
virtual void	setParentWidget (QWidget *widget)
virtual void	sizeHintChanged () const
Public Member Functions inherited from QLayoutItem
	QLayoutItem (Qt::Alignment alignment)
virtual	~QLayoutItem ()
Qt::Alignment	alignment () const const
virtual QSizePolicy::ControlTypes	controlTypes () const const
virtual bool	hasHeightForWidth () const const
virtual int	heightForWidth (int) const const
virtual void	invalidate ()
virtual QLayout *	layout ()
virtual int	minimumHeightForWidth (int w) const const
void	setAlignment (Qt::Alignment alignment)
virtual QSpacerItem *	spacerItem ()
virtual QWidget *	widget ()

Additional Inherited Members
Protected Attributes inherited from KDChart::AbstractLayoutItem
QWidget *	mParent = nullptr
QLayout *	mParentLayout = nullptr

Detailed Description

   @brief An empty layout item
   \internal

   The AutoSpacerLayoutItem is automatically put into each corner cell of
   the planeLayout grid: one of its reference-layouts is a QVBoxLayout (for
   the top, or bottom axes resp.), the other one is a QHBoxLayout (for the
   left/right sided axes).

   The spacer reserves enough space so all of the AbstractAreas contained
   in the two reference-layouts can display not only their in-bounds
   content but also their overlapping content reaching out of their area.

   KD Chart's layouting is applying this schema:

    +------------------+-------------------------+-----------------+
    | +--------------+ | +---------------------+ | +-------------+ |
    | |              | | |  QVBoxLayout for    | | |             | |
    | |     AUTO     | | |  the top axis/axes  | | |    AUTO     | |
    | |    SPACER    | | +---------------------+ | |   SPACER    | |
    | |     ITEM     | | |                     | | |    ITEM     | |
    | |              | | |                     | | |             | |
    | +--------------+ | +---------------------+ | +-------------+ |
    +------------------+-------------------------+-----------------+
    | +--------+-----+ | +---------------------+ | +-------+-----+ |
    | |        |     | | |                     | | |       |     | |
    | |        |     | | |                     | | |       |     | |
    | | QHBox- |     | | |                     | | | Right |     | |
    | | Layout |     | | |                     | | |       |     | |
    | |        |     | | |                     | | | axes  |     | |
    | | for    |     | | |                     | | |       |     | |
    | |        |     | | |                     | | | layout|     | |
    | | the    |     | | |      DIAGRAM(s)     | | |       |     | |
    | |        |     | | |                     | | |       |     | |
    | | left   |     | | |                     | | |       |     | |
    | |        |     | | |                     | | |       |     | |
    | | axis   |     | | |                     | | |       |     | |
    | | or     |     | | |                     | | |       |     | |
    | | axes   |     | | |                     | | |       |     | |
    | |        |     | | |                     | | |       |     | |
    | +--------+-----+ | +---------------------+ | +-------+-----+ |
    +------------------+-------------------------+-----------------+
    | +--------------+ | +---------------------+ | +-------------+ |
    | |              | | |   QVBoxLayout for   | | |             | |
    | |    AUTO      | | |   the bottom axes   | | |    AUTO     | |
    | |   SPACER     | | +---------------------+ | |   SPACER    | |
    | |    ITEM      | | |                     | | |    ITEM     | |
    | |              | | |                     | | |             | |
    | +--------------+ | +---------------------+ | +-------------+ |
    +------------------+-------------------------+-----------------+

   A typical use case is an Abscissa axis with long labels:

    2 -|
       |
    1 -|
       |
    0 -+------------------------------------
       |        |        |        |        |
    Monday  Tuesday  Wednesday Thursday Friday

The last letters of the word "Friday" would have been cut off in previous versions of KD Chart - that is if you did not call KDChart::Chart::setGlobalLeading().

Now the word will be shown completely because there is an auto-spacer-item taking care for the additional space needed in the lower/right corner.

Definition at line 437 of file KDChartLayoutItems.h.

Constructor & Destructor Documentation

AutoSpacerLayoutItem()

KDChart::AutoSpacerLayoutItem::AutoSpacerLayoutItem	(	bool	layoutIsAtTopPosition,
		QHBoxLayout *	rightLeftLayout,
		bool	layoutIsAtLeftPosition,
		QVBoxLayout *	topBottomLayout
	)

Definition at line 856 of file KDChartLayoutItems.cpp.

Member Function Documentation

expandingDirections()

Qt::Orientations KDChart::AutoSpacerLayoutItem::expandingDirections ( ) const

overridevirtual

Implements QLayoutItem.

Definition at line 867 of file KDChartLayoutItems.cpp.

geometry()

QRect KDChart::AutoSpacerLayoutItem::geometry ( ) const

overridevirtual

Implements QLayoutItem.

Definition at line 872 of file KDChartLayoutItems.cpp.

isEmpty()

bool KDChart::AutoSpacerLayoutItem::isEmpty ( ) const

overridevirtual

Implements QLayoutItem.

Definition at line 877 of file KDChartLayoutItems.cpp.

maximumSize()

QSize KDChart::AutoSpacerLayoutItem::maximumSize ( ) const

overridevirtual

Implements QLayoutItem.

Definition at line 882 of file KDChartLayoutItems.cpp.

minimumSize()

QSize KDChart::AutoSpacerLayoutItem::minimumSize ( ) const

overridevirtual

Implements QLayoutItem.

Definition at line 887 of file KDChartLayoutItems.cpp.

paint()

void KDChart::AutoSpacerLayoutItem::paint ( QPainter *  painter )

overridevirtual

Implements KDChart::AbstractLayoutItem.

Definition at line 952 of file KDChartLayoutItems.cpp.

References QPainter::brush(), QPainter::brushOrigin(), QPainter::deviceTransform(), QPainter::drawLine(), QPainter::drawRect(), QTransform::map(), Qt::NoBrush, Qt::NoPen, QPainter::pen(), QPoint::rx(), QPoint::ry(), QPainter::setBrush(), QPainter::setBrushOrigin(), and QPainter::setPen().

setGeometry()

void KDChart::AutoSpacerLayoutItem::setGeometry ( const QRect &  r )

overridevirtual

Implements QLayoutItem.

Definition at line 892 of file KDChartLayoutItems.cpp.

sizeHint()

QSize KDChart::AutoSpacerLayoutItem::sizeHint ( ) const

overridevirtual

Implements QLayoutItem.

Definition at line 911 of file KDChartLayoutItems.cpp.

References updateCommonBrush().

---

The documentation for this class was generated from the following files:

• KDChartLayoutItems.h
• KDChartLayoutItems.cpp
