KDGantt::StyleOptionGanttItem Class Reference

QStyleOption subclass for gantt items. More...

#include <KDGanttStyleOptionGanttItem>

Inheritance diagram for KDGantt::StyleOptionGanttItem:

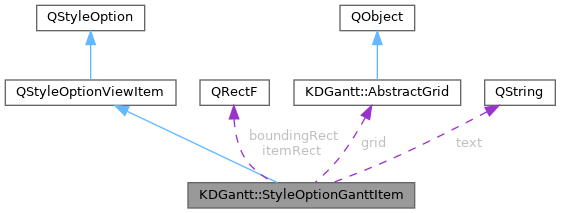

Collaboration diagram for KDGantt::StyleOptionGanttItem:

Public Types
enum	Position { Left , Right , Center , Hidden }
	This enum is used to describe where the Qt::DisplayRole (the label) should be located relative to the item itself. More...
Public Types inherited from QStyleOptionViewItem
enum	Position
enum	StyleOptionType
enum	StyleOptionVersion
enum	ViewItemFeature
enum	ViewItemPosition
Public Types inherited from QStyleOption
enum	OptionType
enum	StyleOptionType
enum	StyleOptionVersion

Public Member Functions
	StyleOptionGanttItem ()
	Constructor.
	StyleOptionGanttItem (const StyleOptionGanttItem &other)
	Copy constructor.
StyleOptionGanttItem &	operator= (const StyleOptionGanttItem &other)
	Assignment operator.
Public Member Functions inherited from QStyleOptionViewItem
	QStyleOptionViewItem ()
	QStyleOptionViewItem (const QStyleOptionViewItem &other)
Public Member Functions inherited from QStyleOption
	QStyleOption (const QStyleOption &other)
	QStyleOption (int version, int type)
	~QStyleOption ()
void	init (const QWidget *widget)
void	initFrom (const QWidget *widget)
QStyleOption &	operator= (const QStyleOption &other)
T	qstyleoption_cast (const QStyleOption *option)
T	qstyleoption_cast (QStyleOption *option)

Public Attributes
QRectF	boundingRect
	Contains the bounding rectangle for the item.
Position	displayPosition = Left
AbstractGrid *	grid = nullptr
	Contains a pointer to the AbstractGrid used by the view.
QRectF	itemRect
	Contains the "active" item rectangle that corresponds to the values from the model.
QString	text
	Contains a string printed to the item.
Public Attributes inherited from QStyleOptionViewItem
	Alternate
	Beginning
	Bottom
	End
	HasCheckIndicator
	HasDecoration
	HasDisplay
	Invalid
	Left
	Middle
	None
	OnlyOne
typedef	QStyleOptionViewItemV2
typedef	QStyleOptionViewItemV3
typedef	QStyleOptionViewItemV4
	Right
	Top
	Type
	Version
typedef	ViewItemFeatures
	WrapText
Public Attributes inherited from QStyleOption
	SO_Button
	SO_ComboBox
	SO_Complex
	SO_ComplexCustomBase
	SO_CustomBase
	SO_Default
	SO_DockWidget
	SO_FocusRect
	SO_Frame
	SO_GraphicsItem
	SO_GroupBox
	SO_Header
	SO_MenuItem
	SO_ProgressBar
	SO_RubberBand
	SO_SizeGrip
	SO_Slider
	SO_SpinBox
	SO_Tab
	SO_TabBarBase
	SO_TabWidgetFrame
	SO_TitleBar
	SO_ToolBar
	SO_ToolBox
	SO_ToolButton
	SO_ViewItem
	Type
	Version

Detailed Description

QStyleOption subclass for gantt items.

Definition at line 22 of file kdganttstyleoptionganttitem.h.

Member Enumeration Documentation

Position

enum KDGantt::StyleOptionGanttItem::Position

This enum is used to describe where the Qt::DisplayRole (the label) should be located relative to the item itself.

Enumerator
Left
Right
Center
Hidden

Definition at line 25 of file kdganttstyleoptionganttitem.h.

Constructor & Destructor Documentation

StyleOptionGanttItem() [1/2]

StyleOptionGanttItem::StyleOptionGanttItem

(

)

Constructor.

Sets grid to 0.

Definition at line 23 of file kdganttstyleoptionganttitem.cpp.

References QStyleOption::SO_CustomBase.

StyleOptionGanttItem() [2/2]

StyleOptionGanttItem::StyleOptionGanttItem

(

const StyleOptionGanttItem &

other

)

Copy constructor.

Creates a copy of other

Definition at line 31 of file kdganttstyleoptionganttitem.cpp.

References operator=().

Member Function Documentation

operator=()

StyleOptionGanttItem & StyleOptionGanttItem::operator=

(

const StyleOptionGanttItem &

other

)

Assignment operator.

Definition at line 38 of file kdganttstyleoptionganttitem.cpp.

References boundingRect, displayPosition, grid, itemRect, and text.

Referenced by StyleOptionGanttItem().

Member Data Documentation

boundingRect

StyleOptionGanttItem::boundingRect

Contains the bounding rectangle for the item.

Definition at line 37 of file kdganttstyleoptionganttitem.h.

Referenced by operator<<(), and operator=().

displayPosition

StyleOptionGanttItem::displayPosition = Left

See also

StyleOptionGanttItem::Position.

Definition at line 39 of file kdganttstyleoptionganttitem.h.

Referenced by KDGantt::Legend::getStyleOption(), operator<<(), and operator=().

grid

StyleOptionGanttItem::grid = nullptr

Contains a pointer to the AbstractGrid used by the view.

Definition at line 40 of file kdganttstyleoptionganttitem.h.

Referenced by operator<<(), and operator=().

itemRect

StyleOptionGanttItem::itemRect

Contains the "active" item rectangle that corresponds to the values from the model.

Definition at line 38 of file kdganttstyleoptionganttitem.h.

Referenced by operator<<(), and operator=().

text

StyleOptionGanttItem::text

Contains a string printed to the item.

Definition at line 41 of file kdganttstyleoptionganttitem.h.

Referenced by operator<<(), and operator=().

---

The documentation for this class was generated from the following files:

• kdganttstyleoptionganttitem.h
• kdganttstyleoptionganttitem.cpp
