Hello Triangle MSAA¶

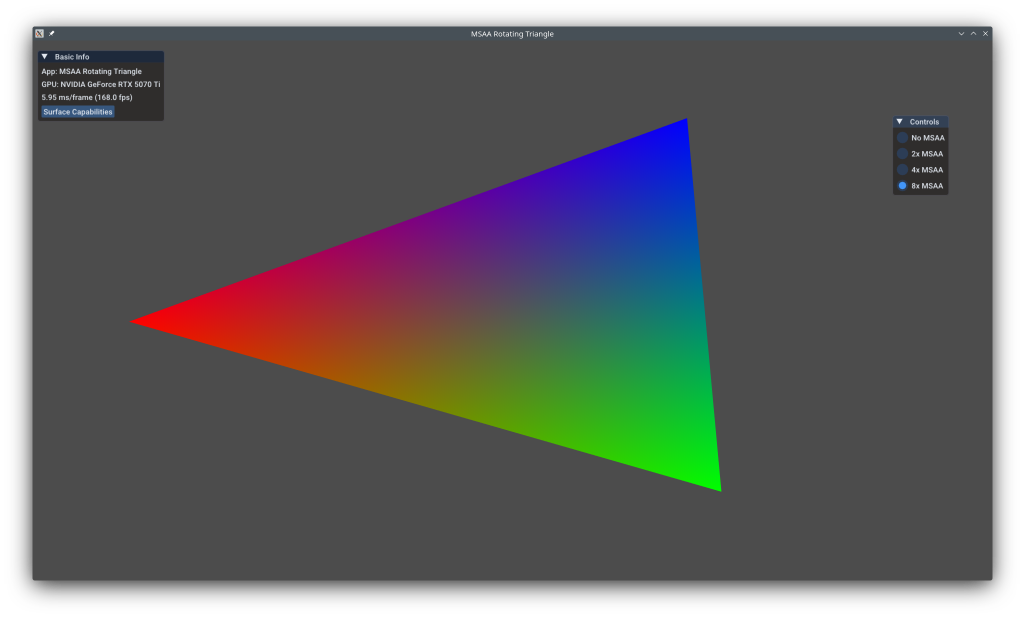

This example introduces multi-sample anti-aliasing, a hardware-accelerated technique for reducing jagged edges (aliasing) on geometry. MSAA samples each pixel multiple times and resolves the samples into a final color, dramatically improving visual quality with modest performance cost. Compare this to Hello Triangle to see the difference.

The example uses the KDGpuExample helper API for simplified setup.

Overview¶

What this example demonstrates:

Creating multi-sampled textures for rendering
Configuring graphics pipelines for MSAA
Resolving multi-sampled images to regular textures
Dynamically switching between MSAA sample counts (1x, 2x, 4x, 8x)

Visual impact:

Without MSAA (1x): Jagged, stair-stepped edges on triangle
With MSAA (4x/8x): Smooth, anti-aliased edges

Vulkan Requirements¶

Vulkan Version: 1.0+
Extensions: None (MSAA is core functionality)
Device Features: Sample counts supported by device (query via VkPhysicalDeviceProperties)

All Vulkan devices support at least 1x (no MSAA) and typically 2x/4x. Many support 8x or higher.

Key Concepts¶

What is Anti-Aliasing?

When rendering geometry to a pixel grid, edges that don't align with pixel boundaries appear jagged or "aliased" - the stair-step effect. Anti-aliasing techniques smooth these edges by sampling multiple points within each pixel and averaging the results.

Multi-Sample Anti-Aliasing (MSAA):

MSAA is a hardware-accelerated anti-aliasing method:

Render to multi-sampled texture: Instead of 1 color per pixel, store N samples (2x, 4x, 8x, etc.)
Fragment shader runs once per pixel: Shading cost doesn't increase (unlike supersampling)
Coverage mask: Hardware determines which samples each triangle covers
Resolve operation: Average the N samples to produce final pixel color

MSAA only anti-aliases geometry edges - textures and shader-computed patterns aren't affected. For those, you need supersampling (SSAA) or other techniques.

Sample Counts (VkSampleCountFlagBits):

1x (Samples1Bit): No MSAA - standard aliased rendering
2x (Samples2Bit): 2 samples per pixel - minimal smoothing, low cost
4x (Samples4Bit): 4 samples per pixel - good quality/performance balance (most common)
8x (Samples8Bit): 8 samples per pixel - high quality, higher cost
16x/32x/64x: Device-dependent, diminishing returns

For more on MSAA: https://www.khronos.org/opengl/wiki/Multisampling

Implementation¶

Creating the Multi-Sampled Texture:

Multi-sampled textures are created similarly to regular textures, but with a samples parameter set to the desired sample count (2, 4, 8, etc.) instead of 1. Key differences:

samples: Set to desired sample count instead of 1
usage: TextureUsageFlagBits::ColorAttachmentBit - used as render target
Memory cost: N samples means N× memory (4x MSAA = 4× texture memory)

The multi-sampled texture stores intermediate rendering with multiple samples per pixel.

void HelloTriangleMSAA::createRenderTarget()
{

    const TextureOptions options = {
        .type = TextureType::TextureType2D,
        .format = m_swapchainFormat,
        .extent = { .width = m_swapchainExtent.width, .height = m_swapchainExtent.height, .depth = 1 },
        .mipLevels = 1,
        .samples = m_samples.get(),
        .usage = TextureUsageFlagBits::ColorAttachmentBit,
        .memoryUsage = MemoryUsage::GpuOnly,
        .initialLayout = TextureLayout::Undefined
    };
    m_msaaTexture = m_device.createTexture(options);
    m_msaaTextureView = m_msaaTexture.createView();
}

Filename: hello_triangle_msaa/hello_triangle_msaa.cpp

Configuring the Render Pass for MSAA:

The render pass configuration is set up with appropriate attachments and sample counts. Critical MSAA setup:

view: Multi-sampled texture where rendering happens
resolveView: Regular texture (swapchain image) where resolved result goes
samples: Must match the multi-sampled texture's sample count

The resolve operation happens automatically at the end of the render pass, averaging the multi-sampled data into the final image.

Pipeline Multisample Configuration:

The pipeline must be configured for the same sample count as the render target. Vulkan does not allow mismatches between pipeline and render pass sample counts.

        .multisample = {
            .samples = samples
        }

Filename: hello_triangle_msaa/hello_triangle_msaa.cpp

Resolve Operation:

The resolve happens implicitly when the render pass ends. Vulkan averages the N samples at each pixel location and writes the result to the resolveView. This is extremely efficient - done by dedicated hardware on the GPU.

From the spec: https://registry.khronos.org/vulkan/specs/1.3-extensions/man/html/VkResolveModeFlagBits.html

    auto opaquePass = commandRecorder.beginRenderPass(KDGpu::RenderPassCommandRecorderOptions{
            .colorAttachments = {
                    {
                            .view = isMsaaEnabled() ? m_msaaTextureView : m_swapchainViews.at(m_currentSwapchainImageIndex),
                            .resolveView = isMsaaEnabled() ? m_swapchainViews.at(m_currentSwapchainImageIndex) : Handle<TextureView_t>{},
                            .clearValue = { 0.3f, 0.3f, 0.3f, 1.0f },
                            .finalLayout = TextureLayout::PresentSrc,
                    },
            },
            .depthStencilAttachment = {
                    .view = m_depthTextureView,
            },
            // configure for multisampling
            .samples = m_samples.get(),
    });

Filename: hello_triangle_msaa/hello_triangle_msaa.cpp

Dynamic Sample Count:

This example creates pipelines for all supported sample counts and switches between them via UI. When changing sample counts:

Recreate the multi-sampled texture with new sample count
Switch to pipeline configured for that sample count
Update render pass configuration

The helper API populates m_supportedSampleCounts by querying device limits.

void HelloTriangleMSAA::setMsaaSampleCount(SampleCountFlagBits samples)
{
    if (samples == m_samples.get())
        return;

    // get new pipeline
    for (size_t i = 0; i < m_supportedSampleCounts.size(); ++i) {
        if (m_supportedSampleCounts[i] == samples) {
            m_currentPipelineIndex = i;
            break;
        }
    }

    // the ExampleEngineLayer will recreate the depth view when we do this
    m_samples = samples;

    // we must also refresh the view(s) we handle, and reattach them
    createRenderTarget();
}

Filename: hello_triangle_msaa/hello_triangle_msaa.cpp

Performance Notes¶

Memory Cost:

MSAA increases color/depth buffer memory by the sample count multiplier
4x MSAA = 4× memory, 8x MSAA = 8× memory
Resolved output (swapchain) is still single-sampled

Bandwidth Cost:

Rendering writes N samples per pixel (higher bandwidth)
Resolve operation adds bandwidth cost (read multi-sampled, write single-sampled)
On tile-based GPUs (mobile), resolve cost is lower due to on-chip storage

Shading Cost:

MSAA: Fragment shader runs once per pixel (good)
Supersampling (SSAA): Fragment shader runs once per sample (N× cost)
MSAA is much more performant than SSAA

Recommended Settings:

Desktop: 4x MSAA is standard, 8x for high-end
Mobile: 2x or 4x MSAA (bandwidth limited)
VR: Often disabled or 2x (need high frame rates)

Tile-Based Deferred Rendering (TBDR): Mobile GPUs (Arm Mali, Qualcomm Adreno, Apple) use TBDR architecture. MSAA is very efficient on TBDR because multi-sampled data stays on-chip (tile memory) and only the resolved result goes to main memory.
